SDEC Engineg Models

Shanghai Diesel Engine Co., Ltd., formerly known as Shanghai Diesel Engine Factory, was founded in 1947.
Shanghai Diesel Engine Co., Ltd. mainly produces SDEC Z, R, H, D, E, K, W, G, 12VK series mechanical and electronic engines, the engine displacement is covering 1.1L-35.1L, with the power coverage is from 8kw to 2210kW.
SDEC engines can meet up to EURO Stage IV emission regulations, and widely used in mining, ports, communications, transportation, airports, hotels, data centers and other industries. It is suitable for isolated islands, deserts, mountains, polar and other special environments.



Find Engines by Series

This is the list of all SDEC engines series for generator drive and marine applications. Click here to find engines by type

50Hz Diesel Generator Set

Z	8 – 60 kW

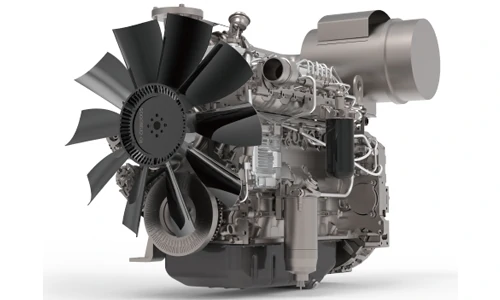

H	40 – 160 kW
D		180 – 200 kW
E		250 - 400 kW
G		300 – 500 kW
W				720 -1000 kW
K			500 -1800 kW
SR			500 -1800 kW
Generator Set Power/kW	0	200	400	600	800	1000	1500	2000

Series

Model

Z 1850 mm * 900 mm * 1250 mm	SDLO8PEOA \| 10 kVA @ 1500 r/min	SDLO10PEOA \| 13 kVA @ 1500 r/min	SDLO12PEOAⅠ\| 15 kVA @ 1500 r/min	SDLO12PEOAⅡ\| 15 kVA @ 1500 r/min
	SDLO12PEOAⅢ \| 15 kVA @ 1500 r/min	SDLO16PEOAⅠ\| 20 kVA @ 1500 r/min	SDLO16PEOAⅡ\| 20 kVA @ 1500 r/min	SDLO16PEOAⅢ\| 20 kVA @ 1500 r/min
	SDLO20PEOAⅠ\| 25 kVA @ 1500 r/min	SDLO20PEOAⅡ \| 25 kVA @ 1500 r/min	SDLO20PEOAⅢ\| 25 kVA @ 1500 r/min	SDLO24PEOAⅠ\| 30 kVA @ 1500 r/min
	SDLO24PEOAⅡ\| 30 kVA @ 1500 r/min	SDLO30PEOA \| 38 kVA @ 1500 r/min	SDLO32PEOAⅠ\| 40 kVA @ 1500 r/min	SDLO32PEOAⅡ\| 40 kVA @ 1500 r/min
	SDLO40PEOAⅠ\| 50 kVA @ 1500 r/min	SDLO40PEOAⅡ\| 50 kVA @ 1500 r/min	SDLO50PEOAⅠ\| 63 kVA @ 1500 r/min	SDLO50PEOAⅡ \| 63 kVA @ 1500 r/min
	SDLO54PEOAⅠ\| 68 kVA @ 1500 r/min	SDLO54PEOAⅡ\| 68 kVA @ 1500 r/min	SDLO60PEOA\| 75 kVA @ 1500 r/min
H 2413 mm * 940 mm * 1376 mm	SDLO40PEOAⅠ\| 50 kVA @ 1500 r/min	SDLO40PEOAⅡ\| 50 kVA @ 1500 r/min	SDLO50PEOAⅠ\| 63 kVA @ 1500 r/min	SDLO50PEOAⅡ\| 63 kVA @ 1500 r/min
	SDLO64PEOAⅠ\| 80 kVA @ 1500 r/min	SDLO64PEOAⅡ\| 80 kVA @ 1500 r/min	SDLO75EEOA \| / kVA @ 1500 r/min	SDLO80PEOAⅠ \| 100 kVA @ 1500 r/min
	SDLO80PEOAⅡ\| 100 kVA @ 1500 r/min	SDLO100EEOAⅠ\| 125 kVA @ 1500 r/min	SDLO100EEOAⅡ\| 125 kVA @ 1500 r/min	SDLO100PEOAⅠ\| 125 kVA @ 1500 r/min
	SDLO100PEOAⅡ\| 125 kVA @ 1500 r/min	SDLO110PEOA \| 138 kVA @ 1500 r/min	SDLO120PEOAⅠ\| 150 kVA @ 1500 r/min	SDLO120PEOAⅡ\| 150 kVA @ 1500 r/min
	SDLO150EEOAⅠ\| 188 kVA @ 1500 r/min	SDLO150EEOAⅡ\| 188 kVA @ 1500 r/min	SDLO150PEOAⅠ\| 188 kVA @ 1500 r/min	SDLO150PEOAⅡ\| 188 kVA @ 1500 r/min
	SDLO160PEOA \| 200 kVA @ 1500 r/min
D 2505 mm * 980 mm * 1500 mm	SDLO180PEOAⅠ\| 225 kVA @ 1500 r/min	SDLO180PEOAⅡ \| 225 kVA @ 1500 r/min	SDLO200PEOAⅠ\| 250 kVA @ 1500 r/min	SDLO200PEOAⅡ\| 250 kVA @ 1500 r/min
E 3090 mm * 1300 mm * 1625 mm	SDLO250EEOA \| 313 kVA @ 1500 r/min	SDLO250PEOAⅠ \| 313 kVA @ 1500 r/min	SDLO250PEOAⅡ \| 313 kVA @ 1500 r/min	SDLO300EEOAⅠ \| 375 kVA @ 1500 r/min
	SDLO300EEOAⅡ\| 375 kVA @ 1500 r/min	SDLO300PEOA \| 375 kVA @ 1500 r/min	SDLO350EEOAⅠ\| 438 kVA @ 1500 r/min	SDLO350EEOAⅡ\| 438 kVA @ 1500 r/min
	SDLO400PEOA \| 500 kVA @ 1500 r/min
G 3624 mm * 1400 mm * 1992 mm	SDLO300PEOA \| 375 kVA @ 1500 r/min	SDLO350EEOA \| / kVA @ 1500 r/min	SDLO400EEOA\| 500 kVA @ 1500 r/min	SDLO400PEOAⅠ \| 500 kVA @ 1500 r/min
	SDLO400PEOAⅡ\| 500 kVA @ 1500 r/min	SDLO500EEOAⅠ\| 625 kVA @ 1500 r/min	SDLO500EEOAⅡ\| 625 kVA @ 1500 r/min	SDLO500PEOAⅠ\| 625 kVA @ 1500 r/min
	SDLO500PEOAⅡ\| 625 kVA @ 1500 r/min	SDLO600EEOAⅠ \| / kVA @ 1500 r/min	SDLO600EEOAⅡ\| / kVA @ 1500 r/min
W 4730 mm * 2198 mm * 2494 mm	SDLO700EEOA \| / kVA @ 1500 r/min	SDLO720EEOA \| 900 kVA @ 1500 r/min	SDLO800EEOA \| 1000 kVA @ 1500 r/min	SDLO800PEOA \| 1000 kVA @ 1500 r/min
W 4730 mm * 2198 mm * 2494 mm	SDLO900PEOA \| 1125 kVA @ 1500 r/min	SDLO1000PEOA \| 1250 kVA @ 1500 r/min
K 4650 mm * 2455 mm * 2515 mm	SDLO400PEOAⅠ\| 500 kVA @ 1500 r/min	SDLO400PEOAⅡ\| 500 kVA @ 1500 r/min	SDLO500PEOAⅠ\| 625 kVA @ 1500 r/min	SDLO500PEOAⅡ \| 625 kVA @ 1500 r/min
	SDLO500EEOAⅠ\| 625 kVA @ 1500 r/min	SDLO500EEOAⅡ\| 625 kVA @ 1500 r/min	SDLO600EEOAⅠ\| 750 kVA @ 1500 r/min	SDLO600EEOAⅡ\| 750 kVA @ 1500 r/min
	SDLO600PEOAⅠ\| 750 kVA @ 1500 r/min	SDLO600PEOAⅡ \| 750 kVA @ 1500 r/min	SDLO700EEOA \| / kVA @ 1500 r/min	SDLO720PEOA \| 900 kVA @ 1500 r/min
	SDLO800PEOA \| 1000 kVA @ 1500 r/min	SDLO1100PEOA \| 1375 kVA @ 1500 r/min	SDLO1200PEOA \| 1500 kVA @ 1500 r/min	SDLO1350PEOA \| 1688 kVA @ 1500 r/min
	SDLO1500PEOA \| 1875 kVA @ 1500 r/min	SDLO1600PEOA \| 2000 kVA @ 1500 r/min	SDLO1800PEOA \| 2250 kVA @ 1500 r/min
SR 4350 mm * 1992 mm * 2200 mm	SDLO500PEOA \| 625 kVA @ 1500 r/min	SDLO540PEOA \| 675 kVA @ 1500 r/min	SDLO600PEOA \| 750 kVA @ 1500 r/min	SDLO1000PEOA \| 1250 kVA @ 1500 r/min
	SDLO1100PEOA \| 1375 kVA @ 1500 r/min	SDLO1200PEOA \| 1500 kVA @ 1500 r/min	SDLO1360PEOA \| 1700 kVA @ 1500 r/min	SDLO1500PEOA \| 1875 kVA @ 1500 r/min
	SDLO1600PEOA \| 2000 kVA @ 1500 r/min	SDLO1800PEOA \| 2250 kVA @ 1500 r/min
——END——

SDLO1800PEOA | Diesel Generator Set

Prime Power (kVA): 2250
Standby Power (kVA): 2500
Engine Model: S16R2-PTAW-C
Dynamotor: TCU468F

SDLO1600PEOA | Diesel Generator Set

Prime Power (kVA): 2000
Standby Power (kVA): 2200
Engine Model: S16R-PTAA2-C
Dynamotor: TCU468D

SDLO1500PEOA | Diesel Generator Set

Prime Power (KVA): 1875
Standby Power (kVA): 2063
Engine Model: S16R-PTA2-C
Dynamotor: TCU468C

SDLO1360PEOA | Diesel Generator Set

Prime Power (kVA): 1700
Standby Power (kVA): 1870
Engine Model: S16R-PTA-C
Dynamotor: TCU468C

SDLO1200PEOA | Diesel Generator Set

Prime Power (kVA): 1500
Standby Power (kVA): 1650
Engine Model: S12R-PTAA2-C
Dynamotor: TCU428G

SDLO1100PEOA | Diesel Generator Set

Prime Power (kVA): 1375
Standby Power (kVA): 1513
Engine Model: S12R-PTA2-C
Dynamotor: TCU428F

SDLO1000PEOA | Diesel Generator Set

Prime Power (kVA): 1250
Standby Power (kVA): 1375
Engine Model: S12R-PTA-C
Dynamotor: TCU428E

SDLO600PEOA | Diesel Generator Set

Prime Power (kVA): 750
Standby Power (kVA): 825
Engine Model: S6R2-PTAA-C
Dynamotor: TCU368G

SDLO540PEOA | Diesel Generator Set

Prime Power (kVA): 675
Standby Power (kVA): 743
Engine Model: S6R2-PTA-C
Dynamotor: TCU368E

SDLO500PEOA | Diesel Generator Set

Prime Power (kVA): 625
Standby Power (kVA): 688
Engine Model: S6R2-PTA-C
Dynamotor: TCU368D

SDLO60PEOA | Diesel Generator Set

Prime Power (kVA): 75
Standby Power (kVA): 83
Engine Model: 4ZTAA3.5-G31
Dynamotor: TCU228E

SDLO54PEOA-II | Diesel Generator Set

Prime Power (kVA): 68
Standby Power (kVA): 74
Engine Model: 4ZTAA3.2-G31
Dynamotor: TCU228D

SDLO54PEOA-I | Diesel Generator Set

Prime Power (kVA): 68
Standby Power (kVA): 74
Engine Model: 4ZTAA4.1-G21
Dynamotor: TCU228D

SDLO50PEOA-II | Diesel Generator Set

Prime Power (kVA): 63
Standby Power (kVA): 69
Engine Model: 4ZT4.1-G21
Dynamotor: TCU228C

SDLO50PEOA-I | Diesel Generator Set

Prime Power (kVA): 63
Standby Power (kVA): 65
Engine Model: 4ZTAA3.2-G34
Dynamotor: TCU228C

SDLO40PEOA-II | Diesel Generator Set

Prime Power (kVA): 50
Standby Power (kVA): 55
Engine Model: 4ZT3.5-G21
Dynamotor: TCU228B

SDLO40PEOA-I | Diesel Generator Set

Prime Power (kVA): 50
Standby Power (kVA): 55
Engine Model: 4ZTAA3.2-G32
Dynamotor: TCU228B

SDLO32PEOA-II | Diesel Generator Set

Prime Power (kVA): 40
Standby Power (kVA): 44
Engine Model: 4ZT3.2-G21
Dynamotor: TCU188E

SDLO32PEOA-I | Diesel Generator Set

Prime Power (kVA): 40
Standby Power (kVA): 44
Engine Model: 4ZTAA3.2-G33
Dynamotor: TCU188E

SDLO30PEOA | Diesel Generator Set

Prime Power (kVA): 38
Standby Power (kVA): 41
Engine Model: 4Z3.2-G41
Dynamotor: TCU188DS

SDLO24PEOA-II | Diesel Generator Set

Prime Power (kVA): 30
Standby Power (kVA): 33
Engine Model: 4Z3.2-G21
Dynamotor: TCU188D

SDLO24PEOA-I | Diesel Generator Set

Prime Power (kVA): 30
Standby Power (kVA): 30
Engine Model: 4Z3.2-G42
Dynamotor: TCU188D

SDLO20PEOA-III | Diesel Generator Set

Prime Power (kVA): 25
Standby Power (kVA): 28
Engine Model: 4Z2.9-G41
Dynamotor: TCU188C

SDLO20PEOA-II | Diesel Generator Set

Prime Power (kVA): 25
Standby Power (kVA): 28
Engine Model: 4Z2.9-G410
Dynamotor: TCU188C

SDLO20PEOA-I | Diesel Generator Set

Prime Power (kVA): 25
Standby Power (kVA): 28
Engine Model: 4Z3.0-G21
Dynamotor: TCU188C

SDLO16PEOA-III | Diesel Generator Set

Prime Power (kVA): 20
Standby Power (kVA): 22
Engine Model: 4Z2.7-G21
Dynamotor: TCU168E

SDLO16PEOA-II | Diesel Generator Set

Prime Power (kVA): 20
Standby Power (kVA): 22
Engine Model: 4Z2.9-G42
Dynamotor: TCU168E

SDLO16PEOA-I | Diesel Generator Set

Prime Power (kVA): 20
Standby Power (kVA): 22
Engine Model: 4Z2.9-G420
Dynamotor: TCU168E

SDLO12PEOA-III | Diesel Generator Set

Prime Power (kVA): 15
Standby Power (kVA): 17
Engine Model: 4Z2.3-G21
Dynamotor: TCU168D

SDLO12PEOA-II | Diesel Generator Set

Prime Power (kVA): 15
Standby Power (kVA): 17
Engine Model: 4Z2.9-G43
Dynamotor: TCU168D

SDLO12PEOA-I | Diesel Generator Set

Prime Power (kVA): 15
Standby Power (kVA): 17
Engine Model: 4Z2.9-G430
Dynamotor: TCU168D

SDLO10PEOA | Diesel Generator Set

Prime Power (kVA): 13
Standby Power (kVA): 14
Engine Model: 3ZT1.1-G42
Dynamotor: TCU168C

SDLO8PEOA | Diesel Generator Set

Prime Power (kVA): 10
Standby Power (kVA): 11
Engine Model: 3Z1.1-G42
Dynamotor: TCU168B

SDLO180PEOA-II | Diesel Generator Set

Prime Power (kVA): 225
Standby Power (kVA): 250
Engine Model: SC9D310D2
Dynamotor: TCU288E

SDLO200PEOA-II | Diesel Generator Set

Prime Power (kVA): 250
Standby Power (kVA): 275
Engine Model: SC9D340D2
Dynamotor: TCU288F

SDLO180PEOA-I | Diesel Generator Set

Prime Power (kVA): 225
Standby Power (kVA): 250
Engine Model: 6DTAA8.9-G32
Dynamotor: TCU288E

SDLO200PEOA-I | Diesel Generator Set

Prime Power (kVA): 250
Standby Power (kVA): 275
Engine Model: 6DTAA8.9-G33
Dynamotor: TCU288F

SDLO400PEOA | Diesel Generator Set

Prime Power (kVA): 500
Standby Power (kVA): 538
Engine Model: 6ETAA12.8-G310
Dynamotor: TCU378E

SDLO350PEOA | Diesel Generator Set

Prime Power (kVA): 438
Standby Power (kVA): 481
Engine Model: 6ETAA12.8-G31
Dynamotor: TCU318D

SDLO350EEOA | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 438
Engine Model: 6ETAA12.8-G32
Dynamotor: TCU318C

SDLO300PEOA | Diesel Generator Set

Prime Power (kVA): 375
Standby Power (kVA): 413
Engine Model: 6ETAA11.8-G31
Dynamotor: TCU318B

SDLO300EEOA-II | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 375
Engine Model: SC12E460D2
Dynamotor: TCU288L

SDLO300EEOA-I | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 375
Engine Model: 6ETAA11.8-G33
Dynamotor: TCU288L

SDLO250PEOA-II | Diesel Generator Set

Prime Power (kVA): 313
Standby Power (kVA): 344
Engine Model: SC12E420D2
Dynamotor: TCU288J

SDLO250PEOA-I | Diesel Generator Set

Prime Power (kVA): 313
Standby Power (kVA): 344
Engine Model: 6ETAA11.8-G32
Dynamotor: TCU288J

SDLO250EEOA | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 313
Engine Model: SC10E380D2
Dynamotor: TCU288H

SDLO1800PEOA | Diesel Generator Set

Prime Power (kVA): 2250
Standby Power (kVA): 2475
Engine Model: 12KTA58-G31
Dynamotor: TCU468F

SDLO1600PEOA | Diesel Generator Set

Prime Power (kVA): 2000
Standby Power (kVA): 2200
Engine Model: 12KTA58-G32
Dynamotor: TCU468D

SDLO1500PEOA | Diesel Generator Set

Prime Power (kVA): 1875
Standby Power (kVA): 2063
Engine Model: 12KTA58-G33
Dynamotor: TCU468C

SDLO1350PEOA | Diesel Generator Set

Prime Power (kVA): 1688
Standby Power (kVA): 1856
Engine Model: 12KTA58-G34
Dynamotor: TCU468C

SDLO1200PEOA | Diesel Generator Set

Prime Power (kVA): 1500
Standby Power (kVA): 1650
Engine Model: 12KTA58-G35
Dynamotor: TCU428G

SDLO1100PEOA | Diesel Generator Set

Prime Power (kVA): 1375
Standby Power (kVA): 1513
Engine Model: 12KTA58-G36
Dynamotor: TCU428F

SDLO700EEOA | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 875
Engine Model: 6KTAA25-G31
Dynamotor: TCU368H

SDLO500EEOA-II | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 625
Engine Model: 6KTAA25-G310
Dynamotor: TCU368B

SDLO400PEOA-II | Diesel Generator Set

Prime Power (kVA): 500
Standby Power (kVA): 550
Engine Model: 6KTAA25-G311
Dynamotor: TCU378E

SDLO600PEOA-II | Diesel Generator Set

Prime Power (kVA): 750
Standby Power (kVA): 825
Engine Model: 6KTAA25-G32
Dynamotor: TCU368G

SDLO720PEOA | Diesel Generator Set

Prime Power (kVA): 900
Standby Power (kVA): 1000
Engine Model: 6KTAA25-G320
Dynamotor: TCU428B

SDLO800PEOA | Diesel Generator Set

Prime Power (kVA): 1000
Standby Power (kVA): 1100
Engine Model: 6KTAA25-G321
Dynamotor: TCU428C

SDLO600EEOA-II | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 750
Engine Model: 6KTAA25-G33
Dynamotor: TCU368E

SDLO500PEOA-II | Diesel Generator Set

Prime Power (kVA): 625
Standby Power (kVA): 688
Engine Model: 6KTAA25-G34
Dynamotor: TCU368D

SDLO500EEOA-I | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 625
Engine Model: 6KTAA25-G35
Dynamotor: TCU368B

SDLO400PEOA-I | Diesel Generator Set

Prime Power (kVA): 500
Standby Power (kVA): 550
Engine Model: 6KTAA25-G36
Dynamotor: TCU378E

SDLO600PEOA-I | Diesel Generator Set

Prime Power (kVA): 750
Standby Power (kVA): N/A
Engine Model: 6KTAA25-G37
Dynamotor: TCU368G

SDLO600EEOA-I | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 750
Engine Model: 6KTAA25-G38
Dynamotor: TCU368E

SDLO500PEOA-I | Diesel Generator Set

Prime Power (kVA): 625
Standby Power (kVA): 688
Engine Model: 6KTAA25-G39
Dynamotor: TCU368D

SDLO160PEOA | Diesel Generator Set

Prime Power (kVA): 200
Standby Power (kVA): 225
Engine Model: 6HTAA6.5-G34
Dynamotor: TCU288D

SDLO150PEOA-II | Diesel Generator Set

Prime Power (kVA): 188
Standby Power (kVA): 206
Engine Model: SC7H250D2
Dynamotor: TCU288C

SDLO150PEOA-I | Diesel Generator Set

Prime Power (kVA): 188
Standby Power (kVA): 206
Engine Model: 6HTAA6.5-G33
Dynamotor: TCU288C

SDLO150EEOA-II | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 188
Engine Model: SC7H230D2
Dynamotor: TCU288AS

SDLO150EEOA-I | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 188
Engine Model: 6HTAA6.5-G35
Dynamotor: TCU288AS

SDLO120PEOA-II | Diesel Generator Set

Prime Power (kVA): 150
Standby Power (kVA): 165
Engine Model: SC7H205D2
Dynamotor: TCU228M

SDLO120PEOA-I | Diesel Generator Set

Prime Power (kVA): 150
Standby Power (kVA): 165
Engine Model: 6HTAA6.5-G32
Dynamotor: TCU228M

SDLO110PEOA | Diesel Generator Set

Prime Power (kVA): 138
Standby Power (kVA): 150
Engine Model: 4HTAA4.3-G36
Dynamotor: TCU228L

SDLO100PEOA-II | Diesel Generator Set

Prime Power (kVA): 125
Standby Power (kVA): 138
Engine Model: SC4H180D2
Dynamotor: TCU228K

SDLO100PEOA-I | Diesel Generator Set

Prime Power (kVA): 125
Standby Power (kVA): 138
Engine Model: 4HTAA4.3-G36
Dynamotor: TCU228K

SDLO100EEOA-II | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 125
Engine Model: SC4H160D2
Dynamotor: TCU228J

SDLO100EEOA-I | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 125
Engine Model: 4HTAA4.3-G35
Dynamotor: TCU228J

SDLO80PEOA-II | Diesel Generator Set

Prime Power (kVA): 100
Standby Power (kVA): 110
Engine Model: SC4H140D2
Dynamotor: TCU228H

SDLO80PEOA-I | Diesel Generator Set

Prime Power (kVA): 100
Standby Power (kVA): 110
Engine Model: 4HTAA4.3-G34
Dynamotor: TCU228H

SDLO75EEOA | Diesel Generator Set

Prime Power (kVA): N/A
Standby Power (kVA): 94
Engine Model: SC4H115D2
Dynamotor: TCU228G

SDLO64PEOA-II | Diesel Generator Set

Prime Power (kVA): 80
Standby Power (kVA): 88
Engine Model: SC4H115D2
Dynamotor: TCU228F

SDLO64PEOA-I | Diesel Generator Set

Prime Power (kVA): 80
Standby Power (kVA): 88
Engine Model: 4HTAA4.3-G33
Dynamotor: TCU228F

SDLO50PEOA-II | Diesel Generator Set

Prime Power (kVA): 63
Standby Power (kVA): 69
Engine Model: SC4H95D2
Dynamotor: TCU228C

SDLO50PEOA-I | Diesel Generator Set

Prime Power (kVA): 63
Standby Power (kVA): 69
Engine Model: 4HTAA4.3-G32
Dynamotor: TCU228C

SDLO40PEOA-II | Diesel Generator Set

Prime Power (kVA): 50
Standby Power (kVA): 55
Engine Model: SC4H95D2
Dynamotor: TCU228B

SDLO40PEOA-I | Diesel Generator Set

Prime Power (kVA): 50
Standby Power (kVA): 55
Engine Model: 4HTAA4.3-G31
Dynamotor: TCU228B

SDLO1000PEOA | Diesel Generator Set

Prime Power: 1000 kW
Standby Power: 1100 kW
Size: 4730*2198*2494 mm
Weight: 8100 kg
Mute Tank: 6058*2438*2896 mm

SDLO900PEOA | Diesel Generator Set

Prime Power: 900 kW
Standby Power: 990 kW
Size: 4730*2198*2494 mm
Weight: 7900 kg
Mute Tank: 6058*2438*2896 mm

SDLO800PEOA | Diesel Generator Set

Prime Power: 800 kW
Standby Power: 880 kW
Size: 4500*1975*2295 mm
Weight: 7480 kg
Mute Tank: 6058*2438*2896 mm

SDLO800EEOA | Diesel Generator Set

Prime Power: N/A
Standby Power: 800 kW
Size: 4433*1775*2378 mm
Weight: 6460 kg
Mute Tank: 6058*2438*2896 mm

SDLO720PEOA | Diesel Generator Set

Prime Power: 720 kW
Standby Power: 800 kW
Size: 4500*1975*2295 mm
Weight: 7250 kg
Mute Tank: 6058*2438*2896 mm

SDLO700EEOA | Diesel Generator Set

Prime Power: N/A
Standby Power: 700 kW
Size: 4433*1775*2378 mm
Weight: 6400 kg
Mute Tank: 6058*2438*2896 mm

SDLO600EEOA-II | Diesel Generator Set

Prime Power: N/A
Standby Power: 600 kW
Size: 3624*1400*1992 mm
Weight: 4650 kg
Mute Tank: 5000*1900*2450 mm

SDLO500PEOA-II | Diesel Generator Set

Prime Power: 500 kW
Standby Power: 550 kW
Size: 3548*1400*1992 mm
Weight: 4400 kg
Mute Tank: 5000*1900*2450 mm

SDLO600EEOA-I | Diesel Generator Set

Prime Power: N/A
Standby Power: 600 kW
Size: 3624*1400*1992 mm
Weight: 4450 kg
Mute Tank: 5000*1900*2450 mm

SDLO500PEOA-I | Diesel Generator Set

Prime Power: 500 kW
Standby Power: 550 kW
Size: 3548*1400*1992 mm
Weight: 4510 kg
Mute Tank: 5000*1900*2450 mm

SDLO500EEOA-II | Diesel Generator Set

Prime Power: N/A
Standby Power: 500 kW
Size: 3548*1400*1992 mm
Weight: 4370 kg
Mute Tank: 5000*1900*2450 mm

SDLO500EEOA-I | Diesel Generator Set

Prime Power: N/A
Standby Power: 500 kW
Size: 3548*1400*1992 mm
Weight: 4260 kg
Mute Tank: 5000*1900*2450 mm

SDLO400PEOA-II | Diesel Generator Set

Prime Power: 400 kW
Standby Power: 440 kW
Size: 3548*1400*1992 mm
Weight: 4300 kg
Mute Tank: 5000*1900*2450 mm

SDLO400PEOA-I | Diesel Generator Set

Prime Power: 400 kW
Standby Power: 440 kW
Size: 3548*1400*1992 mm
Weight: 4200 kg
Mute Tank: 5000*1900*2450 mm

SDLO400EEOA | Diesel Generator Set

Prime Power: N / A
Standby Power: 400 kW
Size: 3449*1400*1992 mm
Weight: 4195 kg
Mute Tank: 5000*1900*2450 mm

SDLO350EEOA | Diesel Generator Set

Prime Power: N / A
Standby Power: 400 kW
Size: 3156 mm * 1230 mm * 1670 mm
Weight: 3025 kg
Mute Tank: 4600*1400*2150 mm

SDLO300PEOA | Diesel Generator Set

Prime Power: 300 kW
Standby Power: 330 kW
Size: 3156*1230*1670 mm
Weight: 2970 kg
Mute Tank: 4600*1400*2150 mm

60Hz Diesel Generator Set

Z	9 – 72 kW
H	50 – 165 kW
D		180 - 220 kW
E					160 – 250 kW
25K					450 - 660 kW
Generator Set Power/kW	0	100	200	300	400	500	600	700

Series

Model

Z /	SDLO9PEOB \| 9 kW @ 1800 r/min	SDLO12PEOB \| 12 kW @ 1800 r/min	SDLO16PEOB \| 16 kW @ 1800 r/min	SDLO20PEOB \| 20 kW @ 1800 r/min
	SDLO24PEOB \| 24 kW @ 1800 r/min	SDLO32PEOB \| 32 kW @ 1800 r/min	SDLO35PEOB \| 35 kW @ 1800 r/min	SDLO50PEOB \| 50 kW @ 1800 r/min
	SDLO60PEOB \| 60 kW @ 1800 r/min	SDLO64PEOB \| 64 kW @ 1800 r/min	SDLO72PEOB \| 72 kW @ 1800 r/min
H 2400 mm * 1025 mm * 1535 mm	SDLO50PEOB \| 50 kW @ 1800 r/min	SDLO55PEOB \| 55 kW @ 1800 r/min	SDLO72PEOB \| 72 kW @ 1800 r/min	SDLO90PEOB \| 90 kW @ 1800 r/min
	SDLO100PEOB-I \| 100 kW @ 1800 r/min	SDLO100PEOB-II \| 100 kW @ 1800 r/min	SDLO120PEOB \| 120 kW @ 1800 r/min	SDLO128PEOB \| 128 kW @ 1800 r/min
	SDLO165PEOB \| 165 kW @ 1800 r/min
D 2600 mm * 1190 mm * 1830 mm	SDLO180PEOB \| 180 kW @ 1800 r/min	SDLO200PEOB \| 200 kW @ 1800 r/min	SDLO220PEOB \| 220 kW @ 1800 r/min
E 3400 mm * 1105 mm * 1626 mm	SDLO280PEOB-I \| 280 kW @ 1800 r/min	SDLO280PEOB-II \| 280 kW @ 1800 r/min	SDLO320PEOB-I \| 320 kW @ 1800 r/min	SDLO320PEOB-II \| 320 kW @ 1800 r/min
E 3400 mm * 1105 mm * 1626 mm	SDLO360PEOB-I \| 360 kW @ 1800 r/min	SDLO360PEOB-II \| 360 kW @ 1800 r/min	SDLO400PEOB \| 400 kW @ 1800 r/min
25K 4191 mm * 1680 mm * 2109 mm	SDLO450PEOB \| 450 kW @ 1800 r/min	SDLO500PEOB \| 500 kVA @ 1800 r/min	SDLO560PEOB-I \| 560 kW @ 1800 r/min	SDLO560PEOB-II \| 560 kW @ 1800 r/min
25K 4191 mm * 1680 mm * 2109 mm	SDLO600PEOB \| 600 kW @ 1800 r/min	SDLO660PEOB \| 660 kW @ 1800 r/min
——END——

50Hz Marine Generator Set

W								500 – 700 kW
K						400 – 519 kW
E				234 kW
G				153 – 288 kW
H		50 – 107 kW
Generator Set Power/kW	0	100	200	300	400	500	600	700

SDEC 50Hz Marine Generator Set Catalogue

Series

Model

W	SDMO500PEOA \| 500 kW @ 1500 r/min	SDMO621PEOA \| 621 kW @ 1500 r/min	SDMO536PEOA \| 536 kW @ 1500 r/min	SDMO640PEOA \| 640 kW @ 1500 r/min
W	SDMO576PEOA \| 576 kW @ 1500 r/min	SDMO500PEOA \| 700 kW @ 1500 r/min
K	SDMO519PEOA \| 519 kW @ 1500 r/min	SDMO432PEOA \| 432 kW @ 1500 r/min	SDMO491PEOA \| 491 kW @ 1500 r/min	SDMO400PEOA \| 400 kW @ 1500 r/min
E	SDMO234PEOA \| 234 kW @ 1500 r/min
G	SDMO153PEOA \| 153 kW @ 1500 r/min	SDMO245PEOA \| 245 kW @ 1500 r/min	SDMO165PEOA \| 165 kW @ 1500 r/min	SDMO270PEOA \| 270 kW @ 1500 r/min
G	SDMO213PEOA \| 213 kW @ 1500 r/min	SDMO288PEOA \| 288 kW @ 1500 r/min	SDMO230PEOA \| 230 kW @ 1500 r/min
H	SDMO50PEOA \| 50 kW @ 1500 r/min	SDMO64PEOA \| 64 kW @ 1500 r/min	SDMO72PEOA \| 72 kW @ 1500 r/min	SDMO96PEOA \| 96 kW @ 1500 r/min
H	SDMO500PEOA \| 107 kW @ 1500 r/min
——END——

60Hz Marine Generator Set

K							380 – 574 kW
E				260 – 320 kW
G				162 – 320 kW
H		56 – 116 kW
D			153 – 200 kW
Generator Set Power/kW	0	100	200	300	400	500	600	700

SDEC 60Hz Marine Generator Set Catalogue

Series

Model

K	SDMO574PEOB \| 574 kW @ 1500 r/min	SDMO455PEOB \| 455 kW @ 1500 r/min	SDMO519PEOB \| 519 kW @ 1500 r/min	SDMO420PEOB \| 420 kW @ 1500 r/min
K	SDMO491PEOB \| 491 kW @ 1500 r/min	SDMO380PEOB \| 380 kW @ 1500 r/min
E	SDMO260PEOB \| 260 kW @ 1500 r/min	SDMO270PEOB \| 270 kW @ 1500 r/min	SDMO320PEOB \| 320 kW @ 1500 r/min
G	SDMO162PEOB \| 162 kW @ 1500 r/min	SDMO200PEOB \| 200 kW @ 1500 r/min	SDMO230PEOB \| 230 kW @ 1500 r/min	SDMO288PEOB \| 288 kW @ 1500 r/min
G	SDMO288PEOB \| 288 kW @ 1500 r/min
H	SDMO52PEOB \| 52 kW @ 1500 r/min	SDMO56PEOB \| 56 kW @ 1500 r/min	SDMO56PEOB-Ⅱ \| 56 kW @ 1500 r/min	SDMO79PEOB \| 79 kW @ 1500 r/min
H	SDMO92PEOB \| 92 kW @ 1500 r/min	SDMO100PEOB \| 100 kW @ 1500 r/min	SDMO116PEOB \| 116 kW @ 1500 r/min
D	SDMO152PEOB \| 153 kW @ 1500 r/min	SDMO182PEOB \| 182 kW @ 1500 r/min	SDMO200PEOB \| 200 kW @ 1500 r/min	SDMO96PEOA \| 96 kW @ 1500 r/min
——END——

Generator - SinoGen

Marine - SeaMac

Automotive - DuraMac

Railways - RailMac

Industrial - ConeMac

Pump - PumpMac

Fire - Pump - PumpMac

EV System - EVMac

Parts - PartMac

Sales Manager - Mrs. Wendy Fu

Sales Director - Mr. Jasper Lee

Shipping Service

Z 1850 mm * 900 mm * 1250 mm	SDLO8PEOA \| 10 kVA @ 1500 r/min	SDLO10PEOA \| 13 kVA @ 1500 r/min	SDLO12PEOAⅠ\| 15 kVA @ 1500 r/min	SDLO12PEOAⅡ\| 15 kVA @ 1500 r/min
	SDLO12PEOAⅢ \| 15 kVA @ 1500 r/min	SDLO16PEOAⅠ\| 20 kVA @ 1500 r/min	SDLO16PEOAⅡ\| 20 kVA @ 1500 r/min	SDLO16PEOAⅢ\| 20 kVA @ 1500 r/min
	SDLO20PEOAⅠ\| 25 kVA @ 1500 r/min	SDLO20PEOAⅡ \| 25 kVA @ 1500 r/min	SDLO20PEOAⅢ\| 25 kVA @ 1500 r/min	SDLO24PEOAⅠ\| 30 kVA @ 1500 r/min
	SDLO24PEOAⅡ\| 30 kVA @ 1500 r/min	SDLO30PEOA \| 38 kVA @ 1500 r/min	SDLO32PEOAⅠ\| 40 kVA @ 1500 r/min	SDLO32PEOAⅡ\| 40 kVA @ 1500 r/min
	SDLO40PEOAⅠ\| 50 kVA @ 1500 r/min	SDLO40PEOAⅡ\| 50 kVA @ 1500 r/min	SDLO50PEOAⅠ\| 63 kVA @ 1500 r/min	SDLO50PEOAⅡ \| 63 kVA @ 1500 r/min
	SDLO54PEOAⅠ\| 68 kVA @ 1500 r/min	SDLO54PEOAⅡ\| 68 kVA @ 1500 r/min	SDLO60PEOA\| 75 kVA @ 1500 r/min
H 2413 mm * 940 mm * 1376 mm	SDLO40PEOAⅠ\| 50 kVA @ 1500 r/min	SDLO40PEOAⅡ\| 50 kVA @ 1500 r/min	SDLO50PEOAⅠ\| 63 kVA @ 1500 r/min	SDLO50PEOAⅡ\| 63 kVA @ 1500 r/min
	SDLO64PEOAⅠ\| 80 kVA @ 1500 r/min	SDLO64PEOAⅡ\| 80 kVA @ 1500 r/min	SDLO75EEOA \| / kVA @ 1500 r/min	SDLO80PEOAⅠ \| 100 kVA @ 1500 r/min
	SDLO80PEOAⅡ\| 100 kVA @ 1500 r/min	SDLO100EEOAⅠ\| 125 kVA @ 1500 r/min	SDLO100EEOAⅡ\| 125 kVA @ 1500 r/min	SDLO100PEOAⅠ\| 125 kVA @ 1500 r/min
	SDLO100PEOAⅡ\| 125 kVA @ 1500 r/min	SDLO110PEOA \| 138 kVA @ 1500 r/min	SDLO120PEOAⅠ\| 150 kVA @ 1500 r/min	SDLO120PEOAⅡ\| 150 kVA @ 1500 r/min
	SDLO150EEOAⅠ\| 188 kVA @ 1500 r/min	SDLO150EEOAⅡ\| 188 kVA @ 1500 r/min	SDLO150PEOAⅠ\| 188 kVA @ 1500 r/min	SDLO150PEOAⅡ\| 188 kVA @ 1500 r/min
	SDLO160PEOA \| 200 kVA @ 1500 r/min
D 2505 mm * 980 mm * 1500 mm	SDLO180PEOAⅠ\| 225 kVA @ 1500 r/min	SDLO180PEOAⅡ \| 225 kVA @ 1500 r/min	SDLO200PEOAⅠ\| 250 kVA @ 1500 r/min	SDLO200PEOAⅡ\| 250 kVA @ 1500 r/min
E 3090 mm * 1300 mm * 1625 mm	SDLO250EEOA \| 313 kVA @ 1500 r/min	SDLO250PEOAⅠ \| 313 kVA @ 1500 r/min	SDLO250PEOAⅡ \| 313 kVA @ 1500 r/min	SDLO300EEOAⅠ \| 375 kVA @ 1500 r/min
	SDLO300EEOAⅡ\| 375 kVA @ 1500 r/min	SDLO300PEOA \| 375 kVA @ 1500 r/min	SDLO350EEOAⅠ\| 438 kVA @ 1500 r/min	SDLO350EEOAⅡ\| 438 kVA @ 1500 r/min
	SDLO400PEOA \| 500 kVA @ 1500 r/min
G 3624 mm * 1400 mm * 1992 mm	SDLO300PEOA \| 375 kVA @ 1500 r/min	SDLO350EEOA \| / kVA @ 1500 r/min	SDLO400EEOA\| 500 kVA @ 1500 r/min	SDLO400PEOAⅠ \| 500 kVA @ 1500 r/min
	SDLO400PEOAⅡ\| 500 kVA @ 1500 r/min	SDLO500EEOAⅠ\| 625 kVA @ 1500 r/min	SDLO500EEOAⅡ\| 625 kVA @ 1500 r/min	SDLO500PEOAⅠ\| 625 kVA @ 1500 r/min
	SDLO500PEOAⅡ\| 625 kVA @ 1500 r/min	SDLO600EEOAⅠ \| / kVA @ 1500 r/min	SDLO600EEOAⅡ\| / kVA @ 1500 r/min
W 4730 mm * 2198 mm * 2494 mm	SDLO700EEOA \| / kVA @ 1500 r/min	SDLO720EEOA \| 900 kVA @ 1500 r/min	SDLO800EEOA \| 1000 kVA @ 1500 r/min	SDLO800PEOA \| 1000 kVA @ 1500 r/min
W 4730 mm * 2198 mm * 2494 mm	SDLO900PEOA \| 1125 kVA @ 1500 r/min	SDLO1000PEOA \| 1250 kVA @ 1500 r/min
K 4650 mm * 2455 mm * 2515 mm	SDLO400PEOAⅠ\| 500 kVA @ 1500 r/min	SDLO400PEOAⅡ\| 500 kVA @ 1500 r/min	SDLO500PEOAⅠ\| 625 kVA @ 1500 r/min	SDLO500PEOAⅡ \| 625 kVA @ 1500 r/min
	SDLO500EEOAⅠ\| 625 kVA @ 1500 r/min	SDLO500EEOAⅡ\| 625 kVA @ 1500 r/min	SDLO600EEOAⅠ\| 750 kVA @ 1500 r/min	SDLO600EEOAⅡ\| 750 kVA @ 1500 r/min
	SDLO600PEOAⅠ\| 750 kVA @ 1500 r/min	SDLO600PEOAⅡ \| 750 kVA @ 1500 r/min	SDLO700EEOA \| / kVA @ 1500 r/min	SDLO720PEOA \| 900 kVA @ 1500 r/min
	SDLO800PEOA \| 1000 kVA @ 1500 r/min	SDLO1100PEOA \| 1375 kVA @ 1500 r/min	SDLO1200PEOA \| 1500 kVA @ 1500 r/min	SDLO1350PEOA \| 1688 kVA @ 1500 r/min
	SDLO1500PEOA \| 1875 kVA @ 1500 r/min	SDLO1600PEOA \| 2000 kVA @ 1500 r/min	SDLO1800PEOA \| 2250 kVA @ 1500 r/min
SR 4350 mm * 1992 mm * 2200 mm	SDLO500PEOA \| 625 kVA @ 1500 r/min	SDLO540PEOA \| 675 kVA @ 1500 r/min	SDLO600PEOA \| 750 kVA @ 1500 r/min	SDLO1000PEOA \| 1250 kVA @ 1500 r/min
	SDLO1100PEOA \| 1375 kVA @ 1500 r/min	SDLO1200PEOA \| 1500 kVA @ 1500 r/min	SDLO1360PEOA \| 1700 kVA @ 1500 r/min	SDLO1500PEOA \| 1875 kVA @ 1500 r/min
	SDLO1600PEOA \| 2000 kVA @ 1500 r/min	SDLO1800PEOA \| 2250 kVA @ 1500 r/min
——END——

Z /	SDLO9PEOB \| 9 kW @ 1800 r/min	SDLO12PEOB \| 12 kW @ 1800 r/min	SDLO16PEOB \| 16 kW @ 1800 r/min	SDLO20PEOB \| 20 kW @ 1800 r/min
	SDLO24PEOB \| 24 kW @ 1800 r/min	SDLO32PEOB \| 32 kW @ 1800 r/min	SDLO35PEOB \| 35 kW @ 1800 r/min	SDLO50PEOB \| 50 kW @ 1800 r/min
	SDLO60PEOB \| 60 kW @ 1800 r/min	SDLO64PEOB \| 64 kW @ 1800 r/min	SDLO72PEOB \| 72 kW @ 1800 r/min
H 2400 mm * 1025 mm * 1535 mm	SDLO50PEOB \| 50 kW @ 1800 r/min	SDLO55PEOB \| 55 kW @ 1800 r/min	SDLO72PEOB \| 72 kW @ 1800 r/min	SDLO90PEOB \| 90 kW @ 1800 r/min
	SDLO100PEOB-I \| 100 kW @ 1800 r/min	SDLO100PEOB-II \| 100 kW @ 1800 r/min	SDLO120PEOB \| 120 kW @ 1800 r/min	SDLO128PEOB \| 128 kW @ 1800 r/min
	SDLO165PEOB \| 165 kW @ 1800 r/min
D 2600 mm * 1190 mm * 1830 mm	SDLO180PEOB \| 180 kW @ 1800 r/min	SDLO200PEOB \| 200 kW @ 1800 r/min	SDLO220PEOB \| 220 kW @ 1800 r/min
E 3400 mm * 1105 mm * 1626 mm	SDLO280PEOB-I \| 280 kW @ 1800 r/min	SDLO280PEOB-II \| 280 kW @ 1800 r/min	SDLO320PEOB-I \| 320 kW @ 1800 r/min	SDLO320PEOB-II \| 320 kW @ 1800 r/min
E 3400 mm * 1105 mm * 1626 mm	SDLO360PEOB-I \| 360 kW @ 1800 r/min	SDLO360PEOB-II \| 360 kW @ 1800 r/min	SDLO400PEOB \| 400 kW @ 1800 r/min
25K 4191 mm * 1680 mm * 2109 mm	SDLO450PEOB \| 450 kW @ 1800 r/min	SDLO500PEOB \| 500 kVA @ 1800 r/min	SDLO560PEOB-I \| 560 kW @ 1800 r/min	SDLO560PEOB-II \| 560 kW @ 1800 r/min
25K 4191 mm * 1680 mm * 2109 mm	SDLO600PEOB \| 600 kW @ 1800 r/min	SDLO660PEOB \| 660 kW @ 1800 r/min
——END——

H N/A	SGLO75EEOA \| 231 kVA @ 1500 r/min	SGLO162PEOA \| 203 kVA @ 1500 r/min	SGLO173PEOA \| 216 kVA @ 1500 r/min	SGLO196PEOA-I \| 245 kVA @ 1500 r/min
H N/A	SGLO196PEOA-II \| 245 kVA @ 1500 r/min	SGLO220PEOA \| 275 kVA @ 1500 r/min	SGLO266PEOA \| 333 kVA @ 1500 r/min	SGLO543PEOA \| 679 kVA @ 1500 r/min
D N/A	SGLO100EEOA-I \| 454 kVA @ 1500 r/min	SGLO100EEOA-II \| 484 kVA @ 1500 r/min	SGLO278PEOA \| 348 kVA @ 1500 r/min	SGLO303PEOA \| 379 kVA @ 1500 r/min
D N/A	SGLO324PEOA \| 405 kVA @ 1500 r/min
E N/A	SGLO150EEOA-I \| 469 kVA @ 1500 r/min	SGLO150EEOA-II \| 665 kVA @ 1500 r/min	SGLO399PEOA \| 499 kVA @ 1500 r/min	SGLO424PEOA-I \| 530 kVA @ 1500 r/min
E N/A	SGLO424PEOA-II \| 530 kVA @ 1500 r/min	SGLO448PEOA \| 560 kVA @ 1500 r/min	SGLO472PEOA \| 590 kVA @ 1500 r/min
——END——

H N/A	SGLO75EEOB \| 231 kVA @ 1800 r/min	SGLO162PEOB \| 203 kVA @ 1800 r/min	SGLO173PEOB \| 216 kVA @ 1800 r/min	SGLO196PEOB-I \| 245 kVA @ 1800 r/min
H N/A	SGLO196PEOB-II \| 245 kVA @ 1800 r/min	SGLO220PEOB \| 275 kVA @ 1800 r/min	SGLO243PEOB \| 304 kVA @ 1800 r/min	SGLO266PEOB \| 333 kVA @ 1800 r/min
D N/A	SGLO100EEOB-I \| 454 kVA @ 1800 r/min	SGLO100EEOB-II \| 484 kVA @ 1800 r/min	SGLO278PEOB \| 348 kVA @ 1800 r/min	SGLO303PEOB \| 379 kVA @ 1800 r/min
D N/A	SGLO324PEOB \| 405 kVA @ 1800 r/min
E N/A	SGLO150EEOB-I \| 469 kVA @ 1800 r/min	SGLO150EEOB-II \| 665 kVA @ 1800 r/min	SGLO399PEOB \| 399 kVA @ 1800 r/min	SGLO424PEOB-I \| 530 kVA @ 1800 r/min
E N/A	SGLO424PEOB-II \| 530 kVA @ 1800 r/min	SGLO448PEOB \| 560 kVA @ 1800 r/min	SGLO472PEOB \| 405 kVA @ 1800 r/min
——END——

W	SDMO500PEOA \| 500 kW @ 1500 r/min	SDMO621PEOA \| 621 kW @ 1500 r/min	SDMO536PEOA \| 536 kW @ 1500 r/min	SDMO640PEOA \| 640 kW @ 1500 r/min
W	SDMO576PEOA \| 576 kW @ 1500 r/min	SDMO500PEOA \| 700 kW @ 1500 r/min
K	SDMO519PEOA \| 519 kW @ 1500 r/min	SDMO432PEOA \| 432 kW @ 1500 r/min	SDMO491PEOA \| 491 kW @ 1500 r/min	SDMO400PEOA \| 400 kW @ 1500 r/min
E	SDMO234PEOA \| 234 kW @ 1500 r/min
G	SDMO153PEOA \| 153 kW @ 1500 r/min	SDMO245PEOA \| 245 kW @ 1500 r/min	SDMO165PEOA \| 165 kW @ 1500 r/min	SDMO270PEOA \| 270 kW @ 1500 r/min
G	SDMO213PEOA \| 213 kW @ 1500 r/min	SDMO288PEOA \| 288 kW @ 1500 r/min	SDMO230PEOA \| 230 kW @ 1500 r/min
H	SDMO50PEOA \| 50 kW @ 1500 r/min	SDMO64PEOA \| 64 kW @ 1500 r/min	SDMO72PEOA \| 72 kW @ 1500 r/min	SDMO96PEOA \| 96 kW @ 1500 r/min
H	SDMO500PEOA \| 107 kW @ 1500 r/min
——END——

SR | 500 – 1800 kW

Z | 8 – 60 kW

D | 180 – 200 kW

E | 250 – 400 kW

K | 500 – 1800 kW

H | 40 – 160 kW

W | 720 – 1000 kW

G | 300 – 500 kW

25K | 450 – 660 kW

13E | 320 – 400 kW

12E | 280 kW

D | 180 – 220 kW

H | 50 – 165 kW

Z | 9 – 72 kW

E | 375 – 532 kW

D | 278 – 387 kW

H | 162 – 543 kW

E | 375 – 532 kW

D | 278 – 387 kW

H | 162-266 kW

W | 500 – 700 kW

K | 400 – 519 kW

E | 234 kW

G | 153 – 288 kW

H | 50 – 107 kW

K | 380 – 574 kW

E | 260 -320 kW

G | 162 – 320 kW

H | 56 – 116 kW

D | 153 – 200 kW

SDEC Engineg Models

Find Engines by Series

50Hz Diesel Generator Set

60Hz Diesel Generator Set
