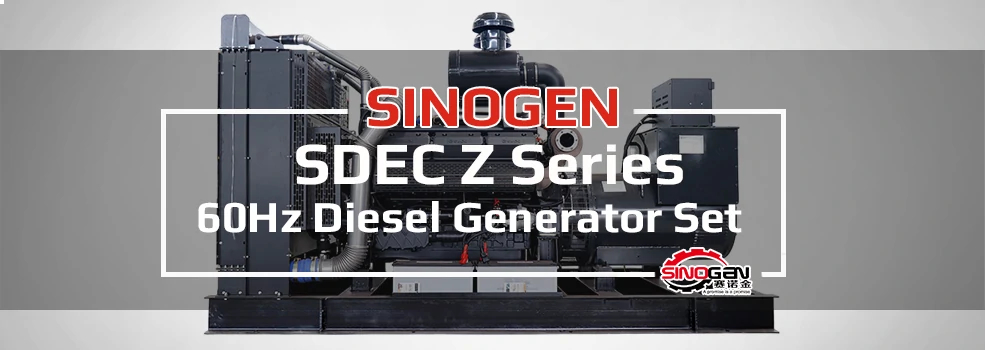

SDEC Z Series | Diesel Generator Set (60hz)

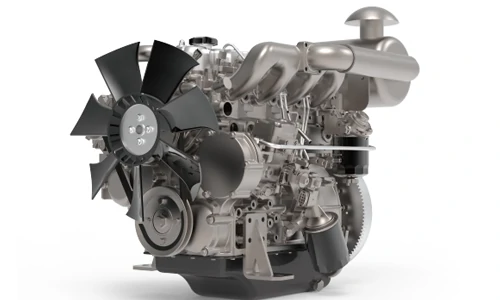

SDEC DXK diesel generator set is the complete generator set manufactured by SDEC in Shanghai. SDEC DXK diesel generator set powered by SDEC Z series diesel engine, comes with 50-degree radiator, Match with Shangchai, Stamford, Marathon and Leroy Somer alternators for customers to choose, controlled by Deepsea, SmartGen, Comap intelligent generator set controller.
The prime power range for 60 Hz of SDEC DXK Series diesel generator set (1800 RPM) form is 9 -72 kW.
Sinogen Series diesel generator set supports low noise generator set and chassis fuel tank, each diesel generator set system is integrated and operated independently. It can generate power with multiple generator sets in parallel, and adopts a large oil passage body and a large flow oil pump to increase the oil circulation and avoid local high temperature; SinoGen can match you with a reasonable unit configuration according to your use environment and method to ensure that it can meet you.
| Prime power(kW): 9 - 72 | Standby power(kW): 10 - 80 | ||
|---|---|---|---|
| Engine | Type: | 3 Cylinders / In-Line | |
| 4 Cylinders / In-Line | |||
| Displacement(L): | 1.1 - 4.1 | ||
| Rate power(kW) / 1800rpm : | 12 - 80 | ||
| Noise(db): | 84 - 102 | ||
| Emission standards: | STAGE IV | ||
| Dynamo Brand: | Evotec | ||
| Generator Model | Prime Power (kW) | Generator Model | Prime Power (kW) | |
|---|---|---|---|---|
| SDLO9PEOB | 9 | SDLO12PEOB | 12 | |
| SDLO16PEOB | 16 | SDLO20PEOB | 20 | |
| SDLO24PEOB | 24 | SDLO32PEOB | 32 | |
| SDLO35PEOB | 35 | SDLO50PEOB | 50 | |
| SDLO60PEOB | 60 | SDLO64PEOB | 64 | |
| SDLO72PEOB | 72 |
SDEC Z Series Generator Set(60hz)
This is the list of all of SDEC Z Series Diesel Generator Set.
Click here to find SDEC PowerGen by power range.
SDLO64PEOB | Diesel Genset
Prime Power: 64 kW
Standby Power: 70 kW
Engine Model: 4ZTAA4.1-G21
Dynamotor: TCU228D
SDLO72PEOB | Diesel Genset
Prime Power: 72 kW
Standby Power: 80 kW
Engine Model: 4ZTAA4.1-G31
Dynamotor: TCU228E
SDLO60PEOB | Diesel Genset
Prime Power: 60 kW
Standby Power: 66 kW
Engine Model: 4ZT4.1-G21
Dynamotor: TCU228C
SDLO20PEOB | Diesel Genset
Prime Power: 20 kW
Standby Power: 22 kW
Engine Model: 4Z2.7-G21
Dynamotor: TCU168F
SDLO50PEOB | Diesel Genset
Prime Power: 50 kW
Standby Power: 55 kW
Engine Model: 4ZT3.5-G21
Dynamotor: TCU228C
SDLO35PEOB | Diesel Genset
Prime Power: 35 kW
Standby Power: 38.5 kW
Engine Model: 4ZT3.2-G21
Dynamotor: TCU188DS
SDLO32PEOB | Diesel Genset
Prime Power: 32 kW
Standby Power: 35 kW
Engine Model: 4Z3.2-G21
Dynamotor: TCU188DS
SDLO24PEOB | Diesel Genset
Prime Power: 24 kW
Standby Power: 26.4 kW
Engine Model: 4Z3.0-G21
Dynamotor: TCU188C
SDLO16PEOB | Diesel Genset
Prime Power: 16 kW
Standby Power: 18 kW
Engine Model: 4Z2.3-G21
Dynamotor: TCU168D
SDLO12PEOB | Diesel Genset
Prime Power: 12kW
Standby Power: 13.2kW
Engine Model: 3ZT1.1-G42
Dynamotor: TCU168C
SDLO9PEOB | Diesel Genset
Prime Power: 9 kW
Standby Power: 10 kW
Engine Model: 3Z1.1-G42
Dynamotor: TCU168B
